How to Construct a Shed Roof

Constructing a shed roof may sound like a major project, but with the right tools, materials, and guidance, it can be a rewarding DIY endeavor. Whether you’re building a new storage shed from scratch or upgrading an older one, the roof plays a critical role in protecting your belongings and extending the life of the structure. It’s the first line of defense against rain, snow, sunlight, and debris. That means a well-constructed shed roof not only adds visual appeal but also ensures your shed stays weatherproof and strong over time.

Before you lift a single hammer, you’ll want to understand your roof’s design, slope, and materials—each of which impacts both performance and aesthetics. This guide will walk you through every step of the process, from choosing the right roof type to installing roofing materials and adding finishing touches.

Choosing the Right Shed Roof Style

Your first decision in constructing a shed roof is selecting the style. Gable roofs, which feature two sloped sides that meet at a ridge, are by far the most popular. They’re easy to build, offer great drainage, and provide additional headroom inside the shed. Another option is the lean-to roof, with a single slope that works well when attaching the shed to another structure. Gambrel roofs, often found on barns, allow for loft storage but require more precision and framing.

For most DIY builders, a gable or lean-to design is the best balance of ease and performance. A gable roof in particular offers structural strength and weather protection, which is why it’s used so often in Hartville Outdoor Products designs.

Understand Local Codes and Permits

Before breaking ground, be sure to check local zoning laws and building codes. Some areas require permits for structures over a certain square footage or with specific roof types. You’ll also want to find out if there are any restrictions on roofing materials or pitch. Ignoring this step could result in costly penalties or forced demolition.

If you’re unsure about local requirements, your local building authority can provide details. Hartville Outdoor Products often recommends checking this early in the project, especially if you’re installing a large or permanent structure.

Calculating the Roof Pitch

The roof pitch determines how steep your roof will be. It’s calculated as the ratio of the rise (vertical height) over the run (horizontal distance), usually expressed in inches per foot. A common shed roof pitch is 4:12, which means it rises 4 inches for every 12 inches of horizontal span. This provides adequate runoff for rain and snow without being too steep to build safely.

Use a framing square or roofing calculator to determine the correct angle before you begin cutting rafters. Keep in mind that your pitch also influences the type of shingles or panels you can install—some materials require a steeper pitch to prevent leaks.

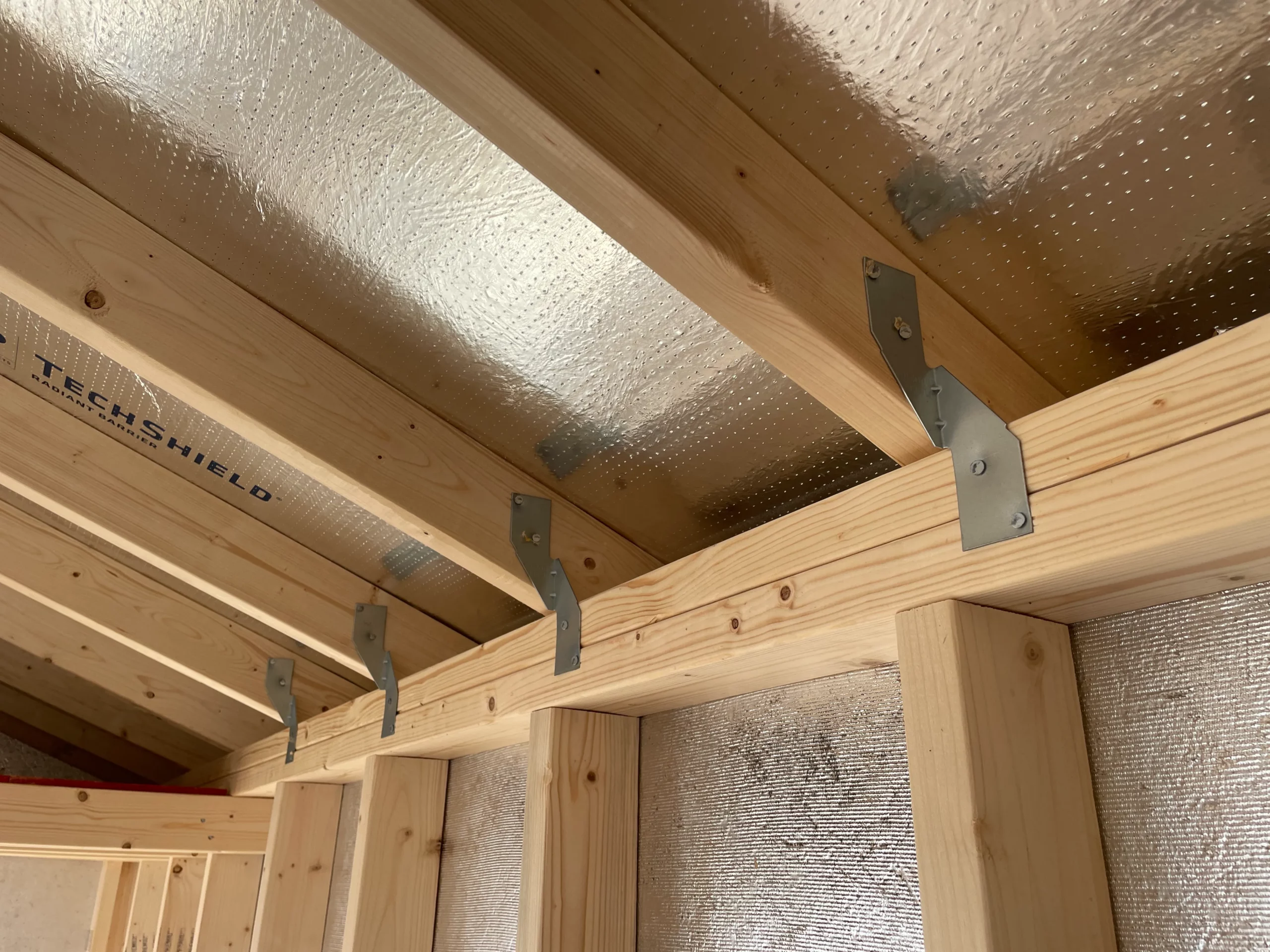

Framing the Roof Structure

Once your shed walls are up, it’s time to construct the framework for your roof. This includes:

• Ridge Board: The horizontal beam at the peak of the roof.
• Rafters: Angled beams that run from the ridge board down to the walls.
• Collar Ties (Optional): Horizontal boards connecting rafters to prevent them from spreading.
• Gable Ends: Vertical triangular walls that support the roof.

Cut your rafters using the measurements determined by your roof pitch. Most shed builders use 2×4 or 2×6 lumber for rafters, depending on the size of the shed and expected snow loads. Rafters should be spaced 16″ or 24″ apart for even load distribution.

If you’re going with a gable roof, start by installing the ridge board across the top of the shed. Next, attach the rafters in pairs on either side, securing them to both the ridge and wall plates. For lean-to roofs, install the taller support wall first, then attach rafters at an angle down to the shorter wall.

Adding Roof Sheathing

Once your rafters are installed and secure, it’s time to add roof sheathing. This is typically done with sheets of exterior-grade plywood or oriented strand board (OSB). Sheathing provides a solid base for roofing materials and helps prevent the roof from flexing or sagging over time.

Start at the bottom corner and work your way up, staggering the seams to improve stability. Nail the sheathing into the rafters using galvanized roofing nails, placing them every 6–8 inches along the edges and every 12 inches in the field.

Before moving to the next step, inspect the sheathing for soft spots or gaps. Sealing these early will help prevent leaks down the road.

Applying Roofing Underlayment

Roofing underlayment acts as a secondary barrier against moisture. Traditional felt paper is commonly used, but synthetic options provide improved durability and weather resistance. Roll out the underlayment across the sheathing, overlapping each row by at least 4 inches and fastening it with cap nails or staples.

Make sure the entire roof surface is covered, including the edges and ridge. Pay extra attention to valleys or areas where two roof planes meet—these are common sources of water intrusion.

For sheds built in high-moisture areas, you may also want to install an ice and water shield along the lower edges to prevent damage from freeze-thaw cycles.

Installing Roof Shingles or Panels

This is where your shed roof really starts to take shape. Asphalt shingles are a popular choice for their affordability and ease of installation. Metal roofing panels are another excellent option, especially for outdoor structures where durability is a top concern.

For shingles:

1. Start with a drip edge along the lower edges of the roof.
2. Lay down starter shingles at the bottom.
3. Apply shingles in rows, staggering each course and nailing them into place according to manufacturer guidelines.
4. Finish with a ridge cap along the peak.

For metal panels:

1. Install foam closures or a waterproof barrier along the roof edge.
2. Position the first panel flush with the roof edge.
3. Screw down each panel, overlapping the next one until the roof is covered.
4. Finish with a ridge cap and sealant.

Both materials offer excellent weather protection, but your choice may come down to appearance, budget, and climate. Hartville’s sheds often feature asphalt shingles for their clean look and reliable performance, though custom options like metal or composite materials are also available.

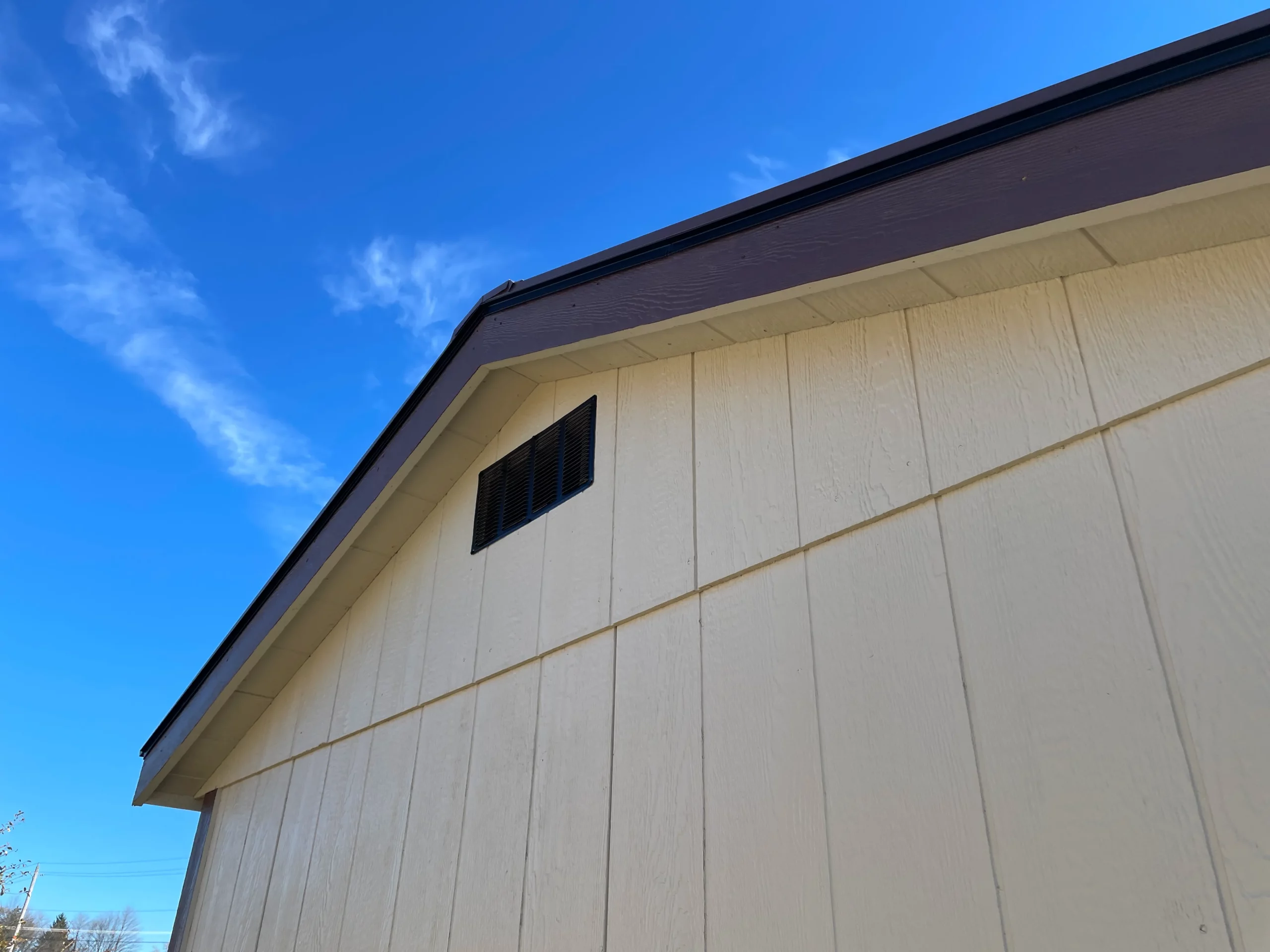

Don’t Forget Roof Ventilation

Proper airflow helps prevent moisture buildup and heat damage inside your shed. Ridge vents, soffit vents, or gable vents can be installed depending on your roof style. Even small sheds benefit from ventilation—it extends the lifespan of your roof and helps maintain consistent temperatures inside.

Adding vents doesn’t require major construction and can often be done with a jigsaw and a few screws. Just make sure vents are covered with mesh to keep out insects and small animals.

Install Fascia and Trim Boards

To finish your roof construction, add fascia boards along the rafter ends. These give the roof a clean, polished look and also serve as mounting surfaces for gutters if desired. Trim boards can be installed along the gable ends or around windows and doors to enhance curb appeal.

Paint or stain your fascia to match your shed’s exterior and seal it against the elements. If your shed will be exposed to direct sunlight or harsh weather, consider using treated lumber or composite materials for extra durability.

Inspect and Maintain Your Roof

Once complete, inspect your roof for missing nails, uneven shingles, or gaps along the flashing. Address any issues before they become bigger problems. Over time, keep an eye out for moss growth, curling shingles, or water stains—all signs your roof may need maintenance.

Seasonal inspections, especially after storms, help extend the life of your shed roof. Clean debris regularly, check for animal nests, and re-caulk any exposed joints to maintain watertight performance.

Choosing Prefab vs. DIY

If you’re unsure about your carpentry skills or want to save time, consider starting with a prefabricated shed or roof kit. Hartville Outdoor Products offers both assembled and DIY-friendly structures with roofing options already included. This can reduce guesswork and ensure structural integrity, especially for larger or specialized sheds.

However, constructing your shed roof from scratch gives you the satisfaction of a fully custom solution—and it can be more cost-effective if you already have tools and basic experience.

Final Thoughts

Building a shed roof is a rewarding project that adds long-term value and protection to your outdoor space. From framing and sheathing to installing shingles and trim, each step matters in creating a durable, weatherproof structure. With good planning and quality materials, even novice DIYers can achieve professional-level results.

Whether you’re building your first shed or upgrading an existing structure, Hartville Outdoor Products has durable storage solutions and inspiration to guide your outdoor projects from start to finish. Browse their in-stock and custom options to find the perfect match for your yard and budget.
